Updated August 26, 2026.
The D5 Hybrid name has been used for a DAS combining SATA and NVMe storage, while recent store pages show materially different specifications. This guide identifies the revision first and avoids mixing the original 10Gbps USB 3.2 model with a possible USB4 version.
Identify the exact revision

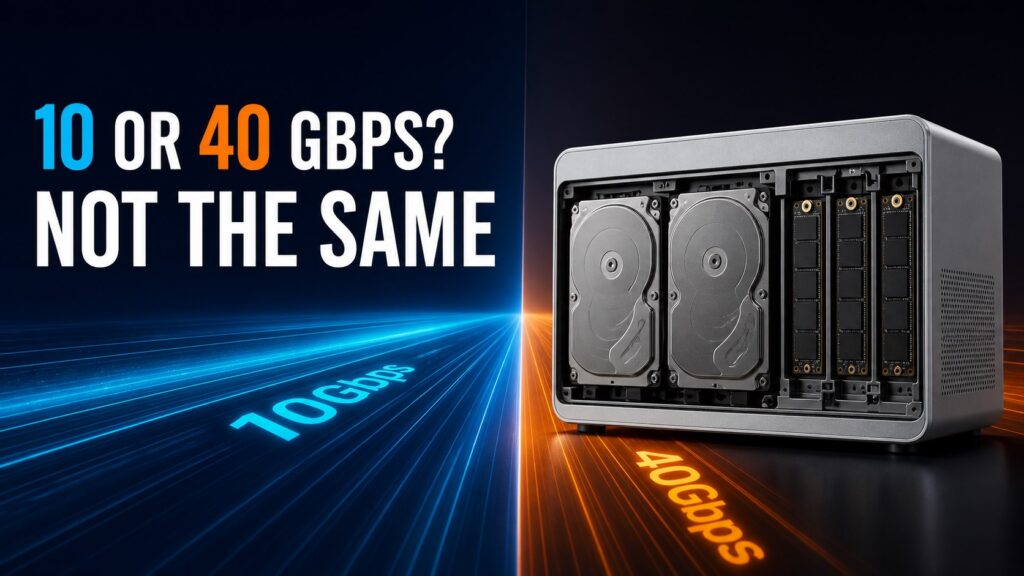

The original model was introduced with two 3.5/2.5-inch SATA bays, three M.2 NVMe slots, and a 10Gbps USB 3.2 Gen 2 connection. Some current store pages describe 40Gbps USB4 and results near 3,800 MB/s that cannot apply to the original interface.
Check the bottom label, manual, ports, and firmware. Do not use tools or instructions for a different revision merely because the retail name matches.
USB4 performance claims cannot upgrade a 10Gbps USB 3.2 enclosure through software.
Hybrid storage design
The concept combines inexpensive HDD capacity with fast NVMe project storage. Depending on revision and manager software, SATA disks may support individual, JBOD, RAID 0, or RAID 1 layouts, while NVMe drives form a separate set.
There is no automatic tiering magic. If NVMe is the active workspace and HDD is the archive, define explicit folders and backup jobs.
Real performance
On the 10Gbps version, all drives share roughly 1 GB/s of practical bandwidth. NVMe drives are much faster internally, so the link caps transfers. On USB4, the controller, cable, host port, and cooling determine sustained results.
Test with data sets larger than cache. RAID 0 increases risk and requires backup; RAID 1 protects against one drive failure but not deletion.
Thermals and compatibility
HDDs create vibration while NVMe drives concentrate heat. Install the specified cooling, maintain airflow, and monitor temperatures under sustained writes.
Before buying SSDs, verify M.2 format, capacity, and the compatibility list. File-system choice determines portability and permissions across macOS, Windows, and Linux.
Creative workflows
A sensible layout keeps originals and archives on redundant HDD storage, active temporary projects on NVMe, and an independent copy outside the D5. Finished work returns to protected storage.
For collaboration, a DAS does not replace a NAS: only the attached host gets direct access. Network sharing shifts performance and security responsibility to that computer.
Disconnects and backup
Eject every volume before unplugging USB or switching off. Check cache activity, copy jobs, and RAID operations. Use a UPS for long-running work.
Maintain at least one other copy. Multiple volumes in one enclosure still share a power supply, controller, cable, and physical risk.
Verdict
The D5 Hybrid can combine archive capacity with a fast workspace, but the hardware revision is a core part of the product. Recommend it only after verifying the exact interface, RAID modes, and cooling.
